Calibrate model, and calibration test

Calibrate a model on one repository, and check calibration on another repository.

1
FilterSamples --filter_train 0 --rep $REP --filter_by_cohort "Time-Window:0,365" --samples $SAMPLES --output $OUTPUT --json_mat $JSON
Comments:

  • Time Window should be 0 to horizon. Thus, 0,365 means calibrated risk for outcome within 1 year. And 0,730 would mean calibrated risk for outcome within 2 years.
  • json_mat is required even though it has no effect (to be removed)
  • filter_train default is 1 => take just train. As we set 0 - all samples are taken.

Standard predict for the samples generated previously.

1
Flow --get_model_preds --rep $REP --f_samples $INPUT --f_model $MODEL --f_preds $PREDS_FOR_CALIBRATION

1
adjust_model --postProcessors $JSON --rep $REP --samples $PREDS_FOR_CALIBRATION --inModel $MODEL --skip_model_apply 1 --out $OUTPUT
Comments:

  • The OUTPUT is a model with calibration
  • The terminal output is 'staircase graph' - bins and calibrated risk (printed on screen and reachable through Flow --print_model_info)  Output format example:
    1
2
3
4
5
6
7
8
    Succesfully added 1 post_processors
Created 44 bins for mapping prediction scores to probabilities
Range: [0.7224, 2147483648.0000] => 1.0000 | 10.77%(107736.000000 / 1000000.000000)
Range: [0.6419, 0.7224] => 0.2500 | 9.98%(99850.000000 / 1000000.000000)
Range: [0.4393, 0.6419] => 0.1123 | 11.70%(116964.000000 / 1000000.000000)
Range: [0.4373, 0.4393] => 0.1000 | 4.30%(43022.000000 / 1000000.000000)
Range: [0.4284, 0.4373] => 0.0889 | 7.88%(78793.000000 / 1000000.000000)
...
      The required JSON is:
     1
 2
 3
 4
 5
 6
 7
 8
 9
10
    {
    "post_processors": [
        {
            "action_type":"post_processor",
            "pp_type":"calibrator",
            "calibration_type":"isotonic_regression",
            "use_p":"0.25"
        }
    ]
}
      Run the program:
    1
    TestCalibration --rep ${REP} --tests_file ${TEST} --output ${OUT_PATH}
    The test file has 3 TAB tokens in each line: samples_path, optional model_path to apply on samples and optional split to filter from samples.   File with expected risk and actual in validation, for each bin of the calibrated model, e.g., plus some KPIs:
    1
2
3
4
5
6
7
8
9
    probabilty_of_model     Validation_probabilty    cases   total_observations     Diff
0.0000%                 0.0000%                  0       11                     0.0000%
0.0046%                 0.0062%                  92      1493236                0.0016%
0.0103%                 0.0096%                  513     5329513                0.0007%
0.0158%                 0.0184%                  398     2166035                0.0026%

9.9270%                 7.6923%                  2       26                     2.2347%
10.8825%                2.0000%                  1       50                     8.8825%
tot_diff(L2)=0.001983 prior=0.002349 prior_loss(L2)=0.003845 R2=0.484125 Num_Bins=108 Calibration_Index=0.000890

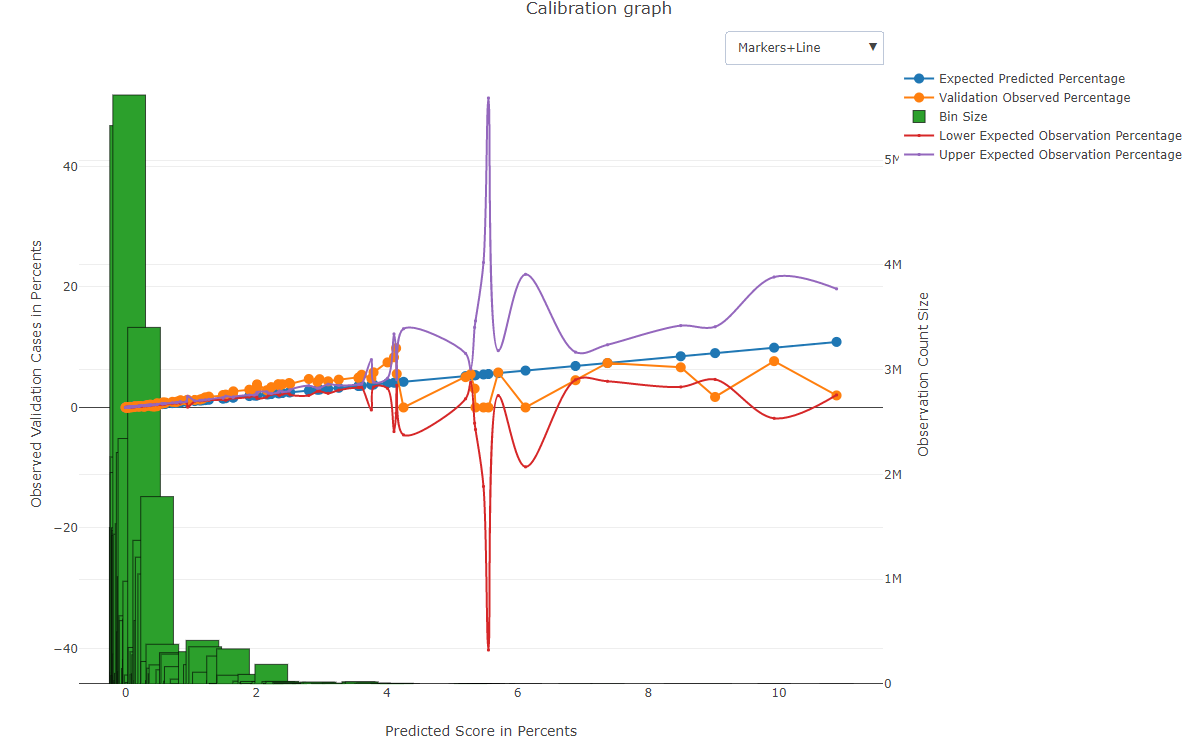

      And a graph
