class to construct input split from multiple files More...

#include <input_split_base.h>

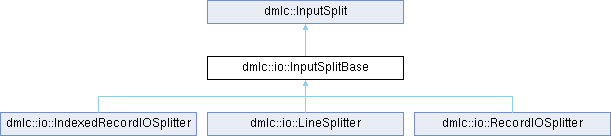

Inheritance diagram for dmlc::io::InputSplitBase:

Data Structures
struct	Chunk
	helper struct to hold chunk data with internal pointer to move along the record More...

Public Member Functions
virtual void	BeforeFirst (void)
	reset the position of InputSplit to beginning

virtual void	HintChunkSize (size_t chunk_size)
	hint the inputsplit how large the chunk size it should return when implementing NextChunk this is a hint so may not be enforced, but InputSplit will try adjust its internal buffer size to the hinted value

virtual size_t	GetTotalSize (void)
	get the total size of the InputSplit

virtual bool	NextRecord (Blob *out_rec)
	get the next record, the returning value is valid until next call to NextRecord, NextChunk or NextBatch caller can modify the memory content of out_rec

virtual bool	NextChunk (Blob *out_chunk)
	get a chunk of memory that can contain multiple records, the caller needs to parse the content of the resulting chunk, for text file, out_chunk can contain data of multiple lines for recordio, out_chunk can contain multiple records(including headers)

virtual void	ResetPartition (unsigned rank, unsigned nsplit)
	reset the Input split to a certain part id, The InputSplit will be pointed to the head of the new specified segment. This feature may not be supported by every implementation of InputSplit.

virtual bool	ReadChunk (void buf, size_t size)
	read a chunk of data into buf the data can span multiple records, but cannot contain partial records

bool	ExtractNextChunk (Blob out_rchunk, Chunk chunk)
	extract next chunk from the chunk

virtual bool	ExtractNextRecord (Blob out_rec, Chunk chunk)=0
	extract next record from the chunk

virtual bool	IsTextParser (void)=0
	query whether this object is a text parser

virtual bool	NextChunkEx (Chunk *chunk)
	fill the given chunk with new data without using internal temporary chunk

virtual bool	NextBatchEx (Chunk *chunk, size_t)
	fill the given chunk with new batch of data without using internal temporary chunk

Public Member Functions inherited from dmlc::InputSplit
virtual bool	NextBatch (Blob *out_chunk, size_t)
	get a chunk of memory that can contain multiple records, with hint for how many records is needed, the caller needs to parse the content of the resulting chunk, for text file, out_chunk can contain data of multiple lines for recordio, out_chunk can contain multiple records(including headers)

virtual	~InputSplit (void) DMLC_THROW_EXCEPTION
	destructor

Static Public Attributes
static const size_t	kBufferSize = 2UL << 20UL

Protected Member Functions
void	Init (FileSystem fs, const char uri, size_t align_bytes, const bool recurse_directories=false)
	intialize the base before doing anything

virtual size_t	SeekRecordBegin (Stream *fi)=0
	seek to the beginning of the first record in current file pointer

virtual const char *	FindLastRecordBegin (const char begin, const char end)=0
	find the last occurance of record header

std::vector< URI >	ConvertToURIs (const std::string &uri)
	split string list of files into vector of URIs

size_t	Read (void *ptr, size_t size)
	same as stream.Read

Protected Attributes
FileSystem *	filesys_
	FileSystem.

std::vector< size_t >	file_offset_
	byte-offset of each file

size_t	offset_curr_
	get the current offset

size_t	offset_begin_
	beginning of offset

size_t	offset_end_
	end of the offset

std::vector< FileInfo >	files_
	information about files

SeekStream *	fs_
	current input stream

size_t	file_ptr_
	file pointer of which file to read on

size_t	file_ptr_end_
	file pointer where the end of file lies

Chunk	tmp_chunk_
	temporal chunk

size_t	buffer_size_
	buffer size

Additional Inherited Members
Static Public Member Functions inherited from dmlc::InputSplit
static InputSplit *	Create (const char uri, unsigned part_index, unsigned num_parts, const char type)
	factory function: create input split given a uri

static InputSplit *	Create (const char uri, const char index_uri, unsigned part_index, unsigned num_parts, const char *type, const bool shuffle=false, const int seed=0, const size_t batch_size=256, const bool recurse_directories=false)
	factory function: create input split given a uri for input and index

Detailed Description

class to construct input split from multiple files

Member Function Documentation

◆ BeforeFirst()

void dmlc::io::InputSplitBase::BeforeFirst ( void )

virtual

reset the position of InputSplit to beginning

Implements dmlc::InputSplit.

Reimplemented in dmlc::io::IndexedRecordIOSplitter.

◆ ExtractNextChunk()

bool dmlc::io::InputSplitBase::ExtractNextChunk	(	Blob *	out_rchunk,
		Chunk *	chunk
	)

extract next chunk from the chunk

Parameters

out_chunk	the output record
chunk	the chunk information

Returns: true if non-empty record is extracted false if the chunk is already finishes its life

◆ ExtractNextRecord()

virtual bool dmlc::io::InputSplitBase::ExtractNextRecord	(	Blob *	out_rec,
		Chunk *	chunk
	)

pure virtual

extract next record from the chunk

Parameters

out_rec	the output record
chunk	the chunk information

Returns: true if non-empty record is extracted false if the chunk is already finishes its life

Implemented in dmlc::io::LineSplitter, dmlc::io::RecordIOSplitter, and dmlc::io::IndexedRecordIOSplitter.

◆ FindLastRecordBegin()

virtual const char * dmlc::io::InputSplitBase::FindLastRecordBegin	(	const char *	begin,
		const char *	end
	)

protectedpure virtual

find the last occurance of record header

Parameters

begin	beginning of the buffer
end	end of the buffer

Returns: the pointer between [begin, end] indicating the last record head

Implemented in dmlc::io::LineSplitter, dmlc::io::RecordIOSplitter, and dmlc::io::IndexedRecordIOSplitter.

◆ GetTotalSize()

virtual size_t dmlc::io::InputSplitBase::GetTotalSize ( void )

inlinevirtual

get the total size of the InputSplit

Implements dmlc::InputSplit.

◆ HintChunkSize()

virtual void dmlc::io::InputSplitBase::HintChunkSize ( size_t )

inlinevirtual

hint the inputsplit how large the chunk size it should return when implementing NextChunk this is a hint so may not be enforced, but InputSplit will try adjust its internal buffer size to the hinted value

Reimplemented from dmlc::InputSplit.

◆ Init()

void dmlc::io::InputSplitBase::Init	(	FileSystem *	fs,
		const char *	uri,
		size_t	align_bytes,
		const bool	recurse_directories = `false`
	)

protected

intialize the base before doing anything

Parameters

fs	the filesystem ptr
uri	the uri of the files
rank	the rank of the split
nsplit	number of splits
align_bytes	the head split must be multiple of align_bytes this also checks if file size are multiple of align_bytes
recurse_directories	recursively travese directories

◆ IsTextParser()

virtual bool dmlc::io::InputSplitBase::IsTextParser ( void )

pure virtual

query whether this object is a text parser

Returns: true if this object represents a text parser; false if it represents a binary parser

Implemented in dmlc::io::LineSplitter, dmlc::io::RecordIOSplitter, and dmlc::io::IndexedRecordIOSplitter.

◆ NextBatchEx()

virtual bool dmlc::io::InputSplitBase::NextBatchEx	(	Chunk *	chunk,
		size_t
	)

inlinevirtual

fill the given chunk with new batch of data without using internal temporary chunk

Reimplemented in dmlc::io::IndexedRecordIOSplitter.

◆ NextChunk()

virtual bool dmlc::io::InputSplitBase::NextChunk ( Blob * out_chunk )

inlinevirtual

get a chunk of memory that can contain multiple records, the caller needs to parse the content of the resulting chunk, for text file, out_chunk can contain data of multiple lines for recordio, out_chunk can contain multiple records(including headers)

This function ensures there won't be partial record in the chunk caller can modify the memory content of out_chunk, the memory is valid until next call to NextRecord, NextChunk or NextBatch

Usually NextRecord is sufficient, NextChunk can be used by some multi-threaded parsers to parse the input content

Parameters

out_chunk used to store the result

Returns: true if we can successfully get next record false if we reached end of split

See also: InputSplit::Create for definition of record; RecordIOChunkReader to parse recordio content from out_chunk

Implements dmlc::InputSplit.

Reimplemented in dmlc::io::IndexedRecordIOSplitter.

◆ NextChunkEx()

virtual bool dmlc::io::InputSplitBase::NextChunkEx ( Chunk * chunk )

inlinevirtual

fill the given chunk with new data without using internal temporary chunk

Reimplemented in dmlc::io::IndexedRecordIOSplitter.

◆ NextRecord()

virtual bool dmlc::io::InputSplitBase::NextRecord ( Blob * out_rec )

inlinevirtual

get the next record, the returning value is valid until next call to NextRecord, NextChunk or NextBatch caller can modify the memory content of out_rec

For text, out_rec contains a single line For recordio, out_rec contains one record content(with header striped)

Parameters

out_rec used to store the result

Returns: true if we can successfully get next record false if we reached end of split

See also: InputSplit::Create for definition of record

Implements dmlc::InputSplit.

Reimplemented in dmlc::io::IndexedRecordIOSplitter.

◆ ReadChunk()

bool dmlc::io::InputSplitBase::ReadChunk	(	void *	buf,
		size_t *	size
	)

virtual

read a chunk of data into buf the data can span multiple records, but cannot contain partial records

Parameters

buf	the memory region of the buffer, should be properly aligned to 64 bits
size	the maximum size of memory, after the function returns, it stores the size of the chunk

Returns: whether end of file was reached

Reimplemented in dmlc::io::IndexedRecordIOSplitter.

◆ ResetPartition()

void dmlc::io::InputSplitBase::ResetPartition	(	unsigned	part_index,
		unsigned	num_parts
	)

virtual

reset the Input split to a certain part id, The InputSplit will be pointed to the head of the new specified segment. This feature may not be supported by every implementation of InputSplit.

Parameters

part_index	The part id of the new input.
num_parts	The total number of parts.

Implements dmlc::InputSplit.

Reimplemented in dmlc::io::IndexedRecordIOSplitter.

◆ SeekRecordBegin()

virtual size_t dmlc::io::InputSplitBase::SeekRecordBegin ( Stream * fi )

protectedpure virtual

seek to the beginning of the first record in current file pointer

Returns: how many bytes we read past

Implemented in dmlc::io::LineSplitter, dmlc::io::RecordIOSplitter, and dmlc::io::IndexedRecordIOSplitter.

The documentation for this class was generated from the following files:

External/xgboost/dmlc-core/src/io/input_split_base.h
External/xgboost/dmlc-core/src/io/input_split_base.cc
