A abstract class that represents a signal used to create registry and it's filter conditions to change outcome values based on current time point usefull if the registry depends seperatly by each signal / only one signal. More...

#include <MedRegistry.h>

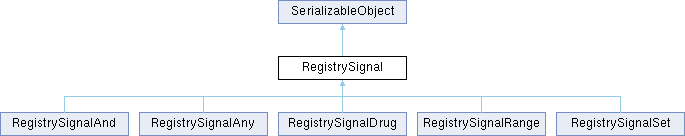

Inheritance diagram for RegistrySignal:

Public Member Functions
	RegistrySignal ()
	Default init ctor for object, that won't contain garbage when not initialized specifically.

virtual bool	get_outcome (const UniversalSigVec &s, int current_i, float &result)=0
	a function that retrive current outcome based on new time point

int	init (map< string, string > &mapper)
	The parsed fields from init command.

virtual void	_init (const map< string, string > &mapper)
	Each specific init function for pther arguments - called from init.

void *	new_polymorphic (string dname)
	for polymorphic classes that want to be able to serialize/deserialize a pointer * to the derived class given its type one needs to implement this function to return a new to the derived class given its type (as in my_type)

Public Member Functions inherited from SerializableObject
virtual int	version () const
	Relevant for serializations.

virtual string	my_class_name () const
	For better handling of serializations it is highly recommended that each SerializableObject inheriting class will implement the next method.

virtual void	serialized_fields_name (vector< string > &field_names) const
	The names of the serialized fields.

virtual void	pre_serialization ()

virtual void	post_deserialization ()

virtual size_t	get_size ()
	Gets bytes sizes for serializations.

virtual size_t	serialize (unsigned char *blob)
	Serialiazing object to blob memory. return number ob bytes wrote to memory.

virtual size_t	deserialize (unsigned char *blob)
	Deserialiazing blob to object. returns number of bytes read.

size_t	serialize_vec (vector< unsigned char > &blob)

size_t	deserialize_vec (vector< unsigned char > &blob)

virtual size_t	serialize (vector< unsigned char > &blob)

virtual size_t	deserialize (vector< unsigned char > &blob)

virtual int	read_from_file (const string &fname)
	read and deserialize model

virtual int	write_to_file (const string &fname)
	serialize model and write to file

virtual int	read_from_file_unsafe (const string &fname)
	read and deserialize model without checking version number - unsafe read

int	init_from_string (string init_string)
	Init from string.

int	init_params_from_file (string init_file)

int	init_param_from_file (string file_str, string &param)

int	update_from_string (const string &init_string)

virtual int	update (map< string, string > &map)
	Virtual to update object from parsed fields.

virtual string	object_json () const

Static Public Member Functions
static RegistrySignal *	make_registry_signal (const string &type, MedRepository &rep, const string &path_to_cfg_file)
	creates Registry rule.

static RegistrySignal *	make_registry_signal (const string &type, MedRepository &rep, const string &init_string, const string &path_to_cfg_file)
	creates Registry rule and uses init_string to initialize the type

static void	parse_registry_rules (const string &reg_cfg, MedRepository &rep, vector< RegistrySignal * > &result)
	parsing of registry signal rules - each line is new signal rule in this format: Each line is TAB seperated by RegistrySignal type and RegistrySignal init string calling RegistrySignal::make_registry_signal

Data Fields
string	signalName
	the signal name

int	duration_flag
	the duration for each positive to merge time ranges

int	buffer_duration
	a buffer duration between positive to negative

bool	take_only_first
	if True will take only first occournce

int	channel
	the channel number the rule operates on

float	outcome_value
	the outcome value when condition holds

Detailed Description

A abstract class that represents a signal used to create registry and it's filter conditions to change outcome values based on current time point usefull if the registry depends seperatly by each signal / only one signal.

Member Function Documentation

◆ _init()

virtual void RegistrySignal::_init ( const map< string, string > & mapper )

inlinevirtual

Each specific init function for pther arguments - called from init.

Reimplemented in RegistrySignalSet, RegistrySignalRange, RegistrySignalDrug, and RegistrySignalAnd.

◆ get_outcome()

virtual bool RegistrySignal::get_outcome	(	const UniversalSigVec &	s,
		int	current_i,
		float &	result
	)

pure virtual

a function that retrive current outcome based on new time point

Implemented in RegistrySignalSet, RegistrySignalRange, RegistrySignalDrug, and RegistrySignalAnd.

◆ init()

int RegistrySignal::init ( map< string, string > & mapper )

virtual

The parsed fields from init command.

        if (it->first == "signalName")
            signalName = it->second;
        else if (it->first == "duration_flag")
            duration_flag = stoi(it->second);
        else if (it->first == "buffer_duration")
            buffer_duration = stoi(it->second);
        else if (it->first == "take_only_first")
            take_only_first = stoi(it->second) > 0;
        else if (it->first == "outcome_value")
            outcome_value = stof(it->second);
        else if (it->first == "channel")
            channel = stoi(it->second);
        else
            rest_arguments[it->first] = it->second;

[RegistrySignal::init]

Reimplemented from SerializableObject.

◆ make_registry_signal()

RegistrySignal * RegistrySignal::make_registry_signal	(	const string &	type,
		MedRepository &	rep,
		const string &	path_to_cfg_file
	)

static

creates Registry rule.

can have "set" for RegistrySignalSet and "range" for RegistrySignalRange. ///

    if (type == "set")
        return new RegistrySignalSet(empty_str, 0, 0, false, rep, empty_arr, path_to_cfg_file);
    else if (type == "range")
        return new RegistrySignalRange(empty_str, 0, 0, false, 0, 0);
    else if (type == "drug")
        return new RegistrySignalDrug(rep, path_to_cfg_file);
    else if (type == "and")
        return new RegistrySignalAnd(rep);
    else if (type == "any")
        return new RegistrySignalAny;
    else
        MTHROW_AND_ERR("Error: Unsupported type \"%s\" for RegistrySignal::make_registry_signal\n", type.c_str());

[RegistrySignal::make_registry_signal]

◆ new_polymorphic()

void * RegistrySignal::new_polymorphic ( string derived_name )

virtual

for polymorphic classes that want to be able to serialize/deserialize a pointer * to the derived class given its type one needs to implement this function to return a new to the derived class given its type (as in my_type)

Reimplemented from SerializableObject.

The documentation for this class was generated from the following files:

Internal/MedUtils/MedUtils/MedRegistry.h
Internal/MedUtils/MedUtils/MedRegistry.cpp
