Base class of any sparse matrices or sparse expressions. More...

#include <SparseMatrixBase.h>

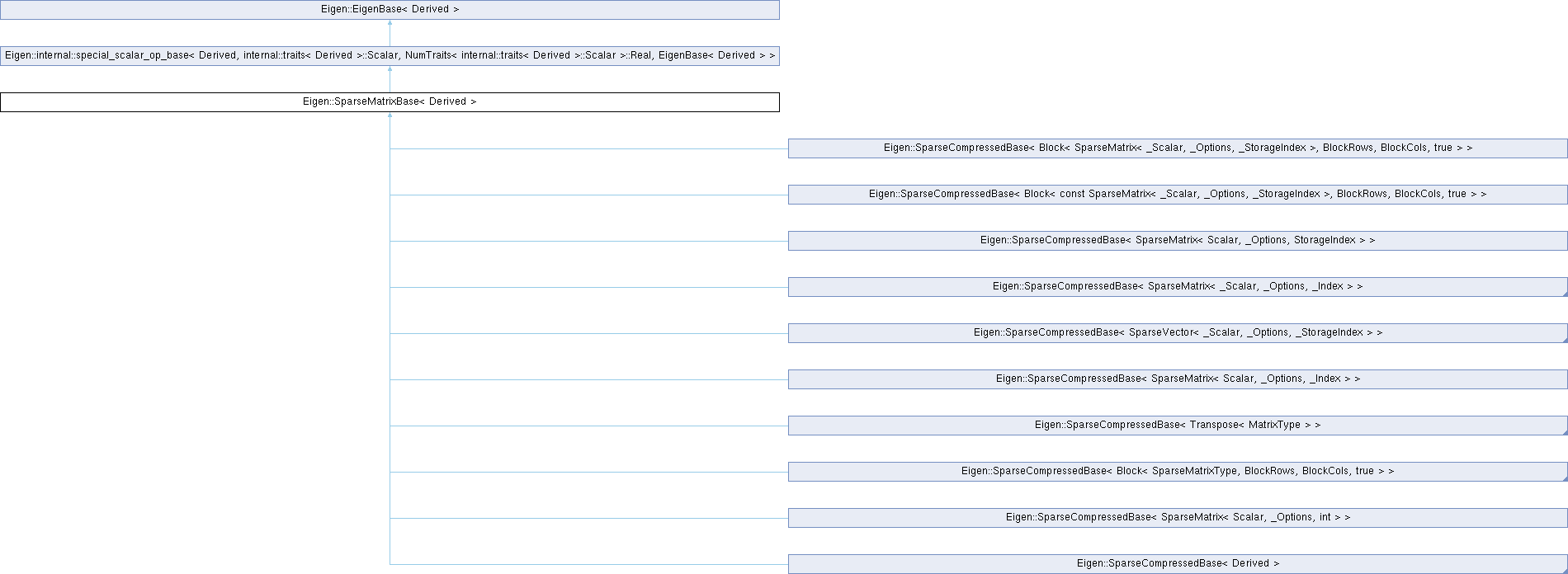

Inheritance diagram for Eigen::SparseMatrixBase< Derived >:

Data Structures
struct	ConstSelfAdjointViewReturnType

struct	CwiseProductDenseReturnType

struct	SelfAdjointViewReturnType

Public Types
enum	{ RowsAtCompileTime = internal::traits<Derived>::RowsAtCompileTime , ColsAtCompileTime = internal::traits<Derived>::ColsAtCompileTime , SizeAtCompileTime , MaxRowsAtCompileTime = RowsAtCompileTime , MaxColsAtCompileTime = ColsAtCompileTime , MaxSizeAtCompileTime , IsVectorAtCompileTime = RowsAtCompileTime == 1 \|\| ColsAtCompileTime == 1 , Flags = internal::traits<Derived>::Flags , IsRowMajor = Flags&RowMajorBit ? 1 : 0 , InnerSizeAtCompileTime , _HasDirectAccess = (int(Flags)&DirectAccessBit) ? 1 : 0 }

typedef internal::traits< Derived >::Scalar	Scalar

typedef Scalar	value_type
	The numeric type of the expression' coefficients, e.g.

typedef internal::packet_traits< Scalar >::type	PacketScalar

typedef internal::traits< Derived >::StorageKind	StorageKind

typedef internal::traits< Derived >::StorageIndex	StorageIndex

typedef internal::add_const_on_value_type_if_arithmetic< typenameinternal::packet_traits< Scalar >::type >::type	PacketReturnType

typedef SparseMatrixBase	StorageBaseType

typedef Matrix< StorageIndex, Dynamic, 1 >	IndexVector

typedef Matrix< Scalar, Dynamic, 1 >	ScalarVector

typedef internal::conditional< NumTraits< Scalar >::IsComplex, CwiseUnaryOp< internal::scalar_conjugate_op< Scalar >, Eigen::Transpose< constDerived > >, Transpose< constDerived > >::type	AdjointReturnType

typedef Transpose< Derived >	TransposeReturnType

typedef internal::add_const< Transpose< constDerived > >::type	ConstTransposeReturnType

typedef SparseMatrix< Scalar, Flags &RowMajorBit ? RowMajor :ColMajor, StorageIndex >	PlainObject

typedef NumTraits< Scalar >::Real	RealScalar
	This is the "real scalar" type; if the Scalar type is already real numbers (e.g.

typedef internal::conditional< _HasDirectAccess, constScalar &, Scalar >::type	CoeffReturnType

typedef CwiseNullaryOp< internal::scalar_constant_op< Scalar >, Matrix< Scalar, Dynamic, Dynamic > >	ConstantReturnType

typedef Matrix< Scalar, RowsAtCompileTime, ColsAtCompileTime >	DenseMatrixType
	type of the equivalent dense matrix

typedef Matrix< Scalar, EIGEN_SIZE_MAX(RowsAtCompileTime, ColsAtCompileTime), EIGEN_SIZE_MAX(RowsAtCompileTime, ColsAtCompileTime)>	SquareMatrixType
	type of the equivalent square matrix

typedef internal::special_scalar_op_base< Derived, Scalar, RealScalar, EigenBase< Derived > >	Base

typedef Block< Derived, IsRowMajor?1:Dynamic, IsRowMajor?Dynamic:1, true >	InnerVectorReturnType

typedef Block< const Derived, IsRowMajor?1:Dynamic, IsRowMajor?Dynamic:1, true >	ConstInnerVectorReturnType

typedef Block< Derived, Dynamic, Dynamic, true >	InnerVectorsReturnType

typedef Block< const Derived, Dynamic, Dynamic, true >	ConstInnerVectorsReturnType

Public Types inherited from Eigen::EigenBase< Derived >
typedef Eigen::Index	Index
	The interface type of indices.

typedef internal::traits< Derived >::StorageKind	StorageKind

Public Member Functions
template<typename OtherDerived >
Derived &	operator= (const EigenBase< OtherDerived > &other)

const Derived &	derived () const

Derived &	derived ()

Derived &	const_cast_derived () const

Index	rows () const

Index	cols () const

Index	size () const

bool	isVector () const

Index	outerSize () const

Index	innerSize () const

bool	isRValue () const

Derived &	markAsRValue ()

template<typename OtherDerived >
Derived &	operator= (const ReturnByValue< OtherDerived > &other)

template<typename OtherDerived >
Derived &	operator= (const SparseMatrixBase< OtherDerived > &other)

Derived &	operator= (const Derived &other)

template<typename OtherDerived >
Derived &	operator+= (const SparseMatrixBase< OtherDerived > &other)

template<typename OtherDerived >
Derived &	operator-= (const SparseMatrixBase< OtherDerived > &other)

template<typename OtherDerived >
Derived &	operator+= (const DiagonalBase< OtherDerived > &other)

template<typename OtherDerived >
Derived &	operator-= (const DiagonalBase< OtherDerived > &other)

Derived &	*operator=** (const Scalar &other)

Derived &	operator/= (const Scalar &other)

template<typename OtherDerived >
EIGEN_STRONG_INLINE const CwiseProductDenseReturnType< OtherDerived >::Type	cwiseProduct (const MatrixBase< OtherDerived > &other) const

template<typename OtherDerived >
const Product< Derived, OtherDerived >	operator* (const DiagonalBase< OtherDerived > &other) const

template<typename OtherDerived >
const Product< Derived, OtherDerived, AliasFreeProduct >	operator* (const SparseMatrixBase< OtherDerived > &other) const

template<typename OtherDerived >
const Product< Derived, OtherDerived >	operator* (const MatrixBase< OtherDerived > &other) const

SparseSymmetricPermutationProduct< Derived, Upper\|Lower >	twistedBy (const PermutationMatrix< Dynamic, Dynamic, StorageIndex > &perm) const

template<typename OtherDerived >
Derived &	*operator=** (const SparseMatrixBase< OtherDerived > &other)

template<int Mode>
const TriangularView< const Derived, Mode >	triangularView () const

template<unsigned int UpLo>
ConstSelfAdjointViewReturnType< UpLo >::Type	selfadjointView () const

template<unsigned int UpLo>
SelfAdjointViewReturnType< UpLo >::Type	selfadjointView ()

template<typename OtherDerived >
Scalar	dot (const MatrixBase< OtherDerived > &other) const

template<typename OtherDerived >
Scalar	dot (const SparseMatrixBase< OtherDerived > &other) const

RealScalar	squaredNorm () const

RealScalar	norm () const

RealScalar	blueNorm () const

TransposeReturnType	transpose ()

const ConstTransposeReturnType	transpose () const

const AdjointReturnType	adjoint () const

InnerVectorReturnType	innerVector (Index outer)

const ConstInnerVectorReturnType	innerVector (Index outer) const

InnerVectorsReturnType	innerVectors (Index outerStart, Index outerSize)

const ConstInnerVectorsReturnType	innerVectors (Index outerStart, Index outerSize) const

DenseMatrixType	toDense () const

template<typename OtherDerived >
bool	isApprox (const SparseMatrixBase< OtherDerived > &other, const RealScalar &prec=NumTraits< Scalar >::dummy_precision()) const

template<typename OtherDerived >
bool	isApprox (const MatrixBase< OtherDerived > &other, const RealScalar &prec=NumTraits< Scalar >::dummy_precision()) const

const internal::eval< Derived >::type	eval () const

Scalar	sum () const

const SparseView< Derived >	pruned (const Scalar &reference=Scalar(0), const RealScalar &epsilon=NumTraits< Scalar >::dummy_precision()) const

template<typename OtherDerived >
EIGEN_STRONG_INLINE Derived &	operator-= (const SparseMatrixBase< OtherDerived > &other)

template<typename OtherDerived >
EIGEN_STRONG_INLINE Derived &	operator+= (const SparseMatrixBase< OtherDerived > &other)

template<typename OtherDerived >
EIGEN_STRONG_INLINE const SparseMatrixBase< Derived >::template CwiseProductDenseReturnType< OtherDerived >::Type	cwiseProduct (const MatrixBase< OtherDerived > &other) const

template<typename OtherDerived >
internal::traits< Derived >::Scalar	dot (const MatrixBase< OtherDerived > &other) const

template<typename OtherDerived >
internal::traits< Derived >::Scalar	dot (const SparseMatrixBase< OtherDerived > &other) const

template<unsigned int UpLo>
SparseMatrixBase< Derived >::template ConstSelfAdjointViewReturnType< UpLo >::Type	selfadjointView () const

template<unsigned int UpLo>
SparseMatrixBase< Derived >::template SelfAdjointViewReturnType< UpLo >::Type	selfadjointView ()

void	operator* (dummy) const

void	operator/ (dummy) const

Public Member Functions inherited from Eigen::internal::special_scalar_op_base< Derived, internal::traits< Derived >::Scalar, NumTraits< internal::traits< Derived >::Scalar >::Real, EigenBase< Derived > >
void	operator* (dummy) const

void	operator/ (dummy) const

Public Member Functions inherited from Eigen::EigenBase< Derived >
EIGEN_DEVICE_FUNC Derived &	derived ()

EIGEN_DEVICE_FUNC const Derived &	derived () const

EIGEN_DEVICE_FUNC Derived &	const_cast_derived () const

EIGEN_DEVICE_FUNC const Derived &	const_derived () const

EIGEN_DEVICE_FUNC Index	rows () const

EIGEN_DEVICE_FUNC Index	cols () const

EIGEN_DEVICE_FUNC Index	size () const

template<typename Dest >
EIGEN_DEVICE_FUNC void	evalTo (Dest &dst) const

template<typename Dest >
EIGEN_DEVICE_FUNC void	addTo (Dest &dst) const

template<typename Dest >
EIGEN_DEVICE_FUNC void	subTo (Dest &dst) const

template<typename Dest >
EIGEN_DEVICE_FUNC void	applyThisOnTheRight (Dest &dst) const

template<typename Dest >
EIGEN_DEVICE_FUNC void	applyThisOnTheLeft (Dest &dst) const

Protected Member Functions
template<typename OtherDerived >
Derived &	assign (const OtherDerived &other)

template<typename OtherDerived >
void	assignGeneric (const OtherDerived &other)

Static Protected Member Functions
static StorageIndex	convert_index (const Index idx)

Protected Attributes
bool	m_isRValue

Friends
std::ostream &	operator<< (std::ostream &s, const SparseMatrixBase &m)

template<typename OtherDerived >
const Product< OtherDerived, Derived >	operator* (const DiagonalBase< OtherDerived > &lhs, const SparseMatrixBase &rhs)

template<typename OtherDerived >
const Product< OtherDerived, Derived >	operator* (const MatrixBase< OtherDerived > &lhs, const SparseMatrixBase &rhs)

Detailed Description

template<typename Derived>
class Eigen::SparseMatrixBase< Derived >

Base class of any sparse matrices or sparse expressions.

Template Parameters

Derived

This class can be extended with the help of the plugin mechanism described on the page TopicCustomizingEigen by defining the preprocessor symbol EIGEN_SPARSEMATRIXBASE_PLUGIN.

Member Typedef Documentation

◆ RealScalar

template<typename Derived >

typedef NumTraits<Scalar>::Real Eigen::SparseMatrixBase< Derived >::RealScalar

This is the "real scalar" type; if the Scalar type is already real numbers (e.g.

int, float or double) then RealScalar is just the same as Scalar. If Scalar is std::complex<T> then RealScalar is T.

See also: class NumTraits

◆ value_type

template<typename Derived >

typedef Scalar Eigen::SparseMatrixBase< Derived >::value_type

The numeric type of the expression' coefficients, e.g.

float, double, int or std::complex<float>, etc.

It is an alias for the Scalar type

Member Enumeration Documentation

◆ anonymous enum

template<typename Derived >

anonymous enum

Enumerator
RowsAtCompileTime	The number of rows at compile-time. This is just a copy of the value provided by the Derived type. If a value is not known at compile-time, it is set to the Dynamic constant. See also MatrixBase::rows(), MatrixBase::cols(), ColsAtCompileTime, SizeAtCompileTime
ColsAtCompileTime	The number of columns at compile-time. This is just a copy of the value provided by the Derived type. If a value is not known at compile-time, it is set to the Dynamic constant. See also MatrixBase::rows(), MatrixBase::cols(), RowsAtCompileTime, SizeAtCompileTime
SizeAtCompileTime	This is equal to the number of coefficients, i.e. the number of rows times the number of columns, or to Dynamic if this is not known at compile-time. See also RowsAtCompileTime, ColsAtCompileTime
IsVectorAtCompileTime	This is set to true if either the number of rows or the number of columns is known at compile-time to be equal to 1. Indeed, in that case, we are dealing with a column-vector (if there is only one column) or with a row-vector (if there is only one row).
Flags	This stores expression Flags flags which may or may not be inherited by new expressions constructed from this one. See the list of flags.

Member Function Documentation

◆ cols()

template<typename Derived >

Index Eigen::SparseMatrixBase< Derived >::cols ( ) const

inline

Returns: the number of columns.

See also: rows()

◆ eval()

template<typename Derived >

const internal::eval< Derived >::type Eigen::SparseMatrixBase< Derived >::eval ( ) const

inline

Returns: the matrix or vector obtained by evaluating this expression.

Notice that in the case of a plain matrix or vector (not an expression) this function just returns a const reference, in order to avoid a useless copy.

◆ innerSize()

template<typename Derived >

Index Eigen::SparseMatrixBase< Derived >::innerSize ( ) const

inline

Returns: the size of the inner dimension according to the storage order, i.e., the number of rows for a columns major matrix, and the number of cols otherwise

◆ innerVector() [1/2]

template<typename Derived >

SparseMatrixBase< Derived >::InnerVectorReturnType Eigen::SparseMatrixBase< Derived >::innerVector ( Index outer )

Returns: the outer -th column (resp. row) of the matrix *this if *this is col-major (resp. row-major).

◆ innerVector() [2/2]

template<typename Derived >

const SparseMatrixBase< Derived >::ConstInnerVectorReturnType Eigen::SparseMatrixBase< Derived >::innerVector ( Index outer ) const

Returns: the outer -th column (resp. row) of the matrix *this if *this is col-major (resp. row-major). Read-only.

◆ innerVectors() [1/2]

template<typename Derived >

SparseMatrixBase< Derived >::InnerVectorsReturnType Eigen::SparseMatrixBase< Derived >::innerVectors	(	Index	outerStart,
		Index	outerSize
	)

Returns: the outer -th column (resp. row) of the matrix *this if *this is col-major (resp. row-major).

◆ innerVectors() [2/2]

template<typename Derived >

const SparseMatrixBase< Derived >::ConstInnerVectorsReturnType Eigen::SparseMatrixBase< Derived >::innerVectors	(	Index	outerStart,
		Index	outerSize
	)		const

Returns: the outer -th column (resp. row) of the matrix *this if *this is col-major (resp. row-major). Read-only.

◆ isVector()

template<typename Derived >

bool Eigen::SparseMatrixBase< Derived >::isVector ( ) const

inline

Returns: true if either the number of rows or the number of columns is equal to 1. In other words, this function returns
rows()==1 || cols()==1

Eigen::SparseMatrixBase::rows
Index rows() const
Definition SparseMatrixBase.h:163

Eigen::SparseMatrixBase::cols
Index cols() const
Definition SparseMatrixBase.h:165

See also: rows(), cols(), IsVectorAtCompileTime.

◆ operator*()

template<typename Derived >

template<typename OtherDerived >

const Product< Derived, OtherDerived, AliasFreeProduct > Eigen::SparseMatrixBase< Derived >::operator* ( const SparseMatrixBase< OtherDerived > & other ) const

inline

Returns: an expression of the product of two sparse matrices. By default a conservative product preserving the symbolic non zeros is performed. The automatic pruning of the small values can be achieved by calling the pruned() function in which case a totally different product algorithm is employed:
C = (A*B).pruned(); // supress numerical zeros (exact)

C = (A*B).pruned(ref);

C = (A*B).pruned(ref,epsilon);

Eigen::SparseMatrixBase::pruned
const SparseView< Derived > pruned(const Scalar &reference=Scalar(0), const RealScalar &epsilon=NumTraits< Scalar >::dummy_precision()) const
Definition SparseView.h:214

where ref is a meaningful non zero reference value.

◆ outerSize()

template<typename Derived >

Index Eigen::SparseMatrixBase< Derived >::outerSize ( ) const

inline

Returns: the size of the storage major dimension, i.e., the number of columns for a columns major matrix, and the number of rows otherwise

◆ pruned()

template<typename Derived >

const SparseView< Derived > Eigen::SparseMatrixBase< Derived >::pruned	(	const Scalar &	reference = `Scalar(0)`,
		const RealScalar &	epsilon = `NumTraits<Scalar>::dummy_precision()`
	)		const

inline

Returns: an expression of *this with values smaller than reference * epsilon are removed.

This method is typically used in conjunction with the product of two sparse matrices to automatically prune the smallest values as follows:

C = (A*B).pruned();             // suppress numerical zeros (exact)
C = (A*B).pruned(ref);
C = (A*B).pruned(ref,epsilon);

where ref is a meaningful non zero reference value.

◆ rows()

template<typename Derived >

Index Eigen::SparseMatrixBase< Derived >::rows ( ) const

inline

Returns: the number of rows.

See also: cols()

◆ size()

template<typename Derived >

Index Eigen::SparseMatrixBase< Derived >::size ( ) const

inline

Returns: the number of coefficients, which is rows()*cols().

See also: rows(), cols().

◆ twistedBy()

template<typename Derived >

SparseSymmetricPermutationProduct< Derived, Upper|Lower > Eigen::SparseMatrixBase< Derived >::twistedBy ( const PermutationMatrix< Dynamic, Dynamic, StorageIndex > & perm ) const

inline

Returns: an expression of P H P^-1 where H is the matrix represented by *this

The documentation for this class was generated from the following files:

External/Eigen/src/Core/util/ForwardDeclarations.h
External/Eigen/src/SparseCore/SparseMatrixBase.h
External/Eigen/src/SparseCore/SparseAssign.h
External/Eigen/src/SparseCore/SparseBlock.h
External/Eigen/src/SparseCore/SparseCwiseBinaryOp.h
External/Eigen/src/SparseCore/SparseCwiseUnaryOp.h
External/Eigen/src/SparseCore/SparseDot.h
External/Eigen/src/SparseCore/SparseFuzzy.h
External/Eigen/src/SparseCore/SparseProduct.h
External/Eigen/src/SparseCore/SparseRedux.h
External/Eigen/src/SparseCore/SparseSelfAdjointView.h
External/Eigen/src/SparseCore/SparseTriangularView.h
External/Eigen/src/SparseCore/SparseView.h

Data Structures

Public Types

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ RealScalar

◆ value_type

Member Enumeration Documentation

◆ anonymous enum

Member Function Documentation

◆ cols()

◆ eval()

◆ innerSize()

◆ innerVector() [1/2]

◆ innerVector() [2/2]

◆ innerVectors() [1/2]

◆ innerVectors() [2/2]

◆ isVector()

◆ operator*()

◆ outerSize()

◆ pruned()

◆ rows()

◆ size()

◆ twistedBy()
