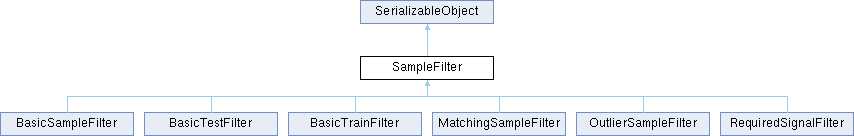

Inheritance diagram for SampleFilter:

Public Member Functions
virtual int	init (void *params)
	initialize from a params object : Should be implemented for inheriting classes that have parameters

virtual int	init (map< string, string > &mapper)
	initialize from a map : Should be implemented for inheriting classes that have parameters

virtual void	init_defaults ()
	initialize to default values : Should be implemented for inheriting classes that have parameters

virtual int	_learn (MedRepository &rep, MedSamples &samples)
	learn with repository : Should be implemented for inheriting classes that learn parameters using Repository information

virtual int	_learn (MedSamples &samples)
	learn without repository : Should be implemented for inheriting classes that learn parameters

virtual int	learn (MedRepository &rep, MedSamples &samples)
	learn with repository

virtual int	learn (MedSamples &samples)
	learn without repository

virtual int	_filter (MedRepository &rep, MedSamples &inSamples, MedSamples &outSamples)
	filter with repository : Should be implemented for inheriting classes that filter using Repository information

virtual int	_filter (MedSamples &inSamples, MedSamples &outSamples)=0
	_filter without repository : Should be implemented for all inheriting classes

virtual int	filter (MedRepository &rep, MedSamples &inSamples, MedSamples &outSamples)
	filter with repository

int	filter (MedRepository &rep, MedSamples &samples)
	in-place filtering with repository

virtual int	filter (MedSamples &inSamples, MedSamples &outSamples)
	filter without repository : Should be implemented for all inheriting classes

int	filter (MedSamples &samples)
	in-place filtering without repository

virtual void	get_required_signals (vector< string > &req_sigs)
	Get all signals required for filtering : Should be implemented for inheriting classes that filter using Repository information.

virtual void *	new_polymorphic (string derived_class_name)
	for polymorphic classes that want to be able to serialize/deserialize a pointer * to the derived class given its type one needs to implement this function to return a new to the derived class given its type (as in my_type)

size_t	get_filter_size ()
	get size of filter + filter_type

size_t	filter_serialize (unsigned char *blob)
	seialize filter + filter_type

Public Member Functions inherited from SerializableObject
virtual int	version () const
	Relevant for serializations.

virtual string	my_class_name () const
	For better handling of serializations it is highly recommended that each SerializableObject inheriting class will implement the next method.

virtual void	serialized_fields_name (vector< string > &field_names) const
	The names of the serialized fields.

virtual void	pre_serialization ()

virtual void	post_deserialization ()

virtual size_t	get_size ()
	Gets bytes sizes for serializations.

virtual size_t	serialize (unsigned char *blob)
	Serialiazing object to blob memory. return number ob bytes wrote to memory.

virtual size_t	deserialize (unsigned char *blob)
	Deserialiazing blob to object. returns number of bytes read.

size_t	serialize_vec (vector< unsigned char > &blob)

size_t	deserialize_vec (vector< unsigned char > &blob)

virtual size_t	serialize (vector< unsigned char > &blob)

virtual size_t	deserialize (vector< unsigned char > &blob)

virtual int	read_from_file (const string &fname)
	read and deserialize model

virtual int	write_to_file (const string &fname)
	serialize model and write to file

virtual int	read_from_file_unsafe (const string &fname)
	read and deserialize model without checking version number - unsafe read

int	init_from_string (string init_string)
	Init from string.

int	init_params_from_file (string init_file)

int	init_param_from_file (string file_str, string &param)

int	update_from_string (const string &init_string)

virtual int	update (map< string, string > &map)
	Virtual to update object from parsed fields.

virtual string	object_json () const

Static Public Member Functions
static SampleFilter *	make_filter (string name)
	create a new sample filter from name

static SampleFilter *	make_filter (SampleFilterTypes type)
	create a new sample filter from type

static SampleFilter *	make_filter (string name, string params)
	create a new sample filter from name and a parameters string

static SampleFilter *	make_filter (SampleFilterTypes type, string params)
	create a new sample filter from type and a parameters string

Data Fields
SampleFilterTypes	filter_type
	The type of the filter.

Member Function Documentation

◆ _filter() [1/2]

virtual int SampleFilter::_filter	(	MedRepository &	rep,
		MedSamples &	inSamples,
		MedSamples &	outSamples
	)

inlinevirtual

filter with repository : Should be implemented for inheriting classes that filter using Repository information

Reimplemented in MatchingSampleFilter, RequiredSignalFilter, and BasicSampleFilter.

◆ _filter() [2/2]

virtual int SampleFilter::_filter	(	MedSamples &	inSamples,
		MedSamples &	outSamples
	)

pure virtual

_filter without repository : Should be implemented for all inheriting classes

Implemented in BasicTrainFilter, BasicTestFilter, OutlierSampleFilter, MatchingSampleFilter, RequiredSignalFilter, and BasicSampleFilter.

◆ _learn()

virtual int SampleFilter::_learn ( MedSamples & samples )

inlinevirtual

learn without repository : Should be implemented for inheriting classes that learn parameters

Reimplemented in OutlierSampleFilter.

◆ get_required_signals()

virtual void SampleFilter::get_required_signals ( vector< string > & req_sigs )

inlinevirtual

Get all signals required for filtering : Should be implemented for inheriting classes that filter using Repository information.

Reimplemented in MatchingSampleFilter, and BasicSampleFilter.

◆ init()

virtual int SampleFilter::init ( map< string, string > & mapper )

inlinevirtual

initialize from a map : Should be implemented for inheriting classes that have parameters

Reimplemented from SerializableObject.

Reimplemented in OutlierSampleFilter, MatchingSampleFilter, RequiredSignalFilter, and BasicSampleFilter.

◆ init_defaults()

virtual void SampleFilter::init_defaults ( )

inlinevirtual

initialize to default values : Should be implemented for inheriting classes that have parameters

Reimplemented in OutlierSampleFilter, MatchingSampleFilter, and RequiredSignalFilter.

◆ new_polymorphic()

void * SampleFilter::new_polymorphic ( string derived_name )

virtual

for polymorphic classes that want to be able to serialize/deserialize a pointer * to the derived class given its type one needs to implement this function to return a new to the derived class given its type (as in my_type)

Reimplemented from SerializableObject.

The documentation for this class was generated from the following files:

Internal/MedProcessTools/MedProcessTools/SampleFilter.h
Internal/MedProcessTools/MedProcessTools/SampleFilter.cpp
